Sample Civil Design

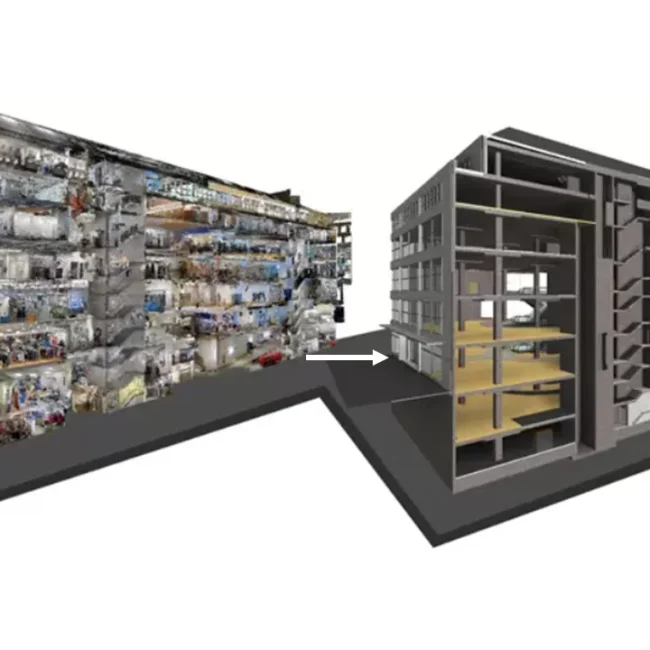

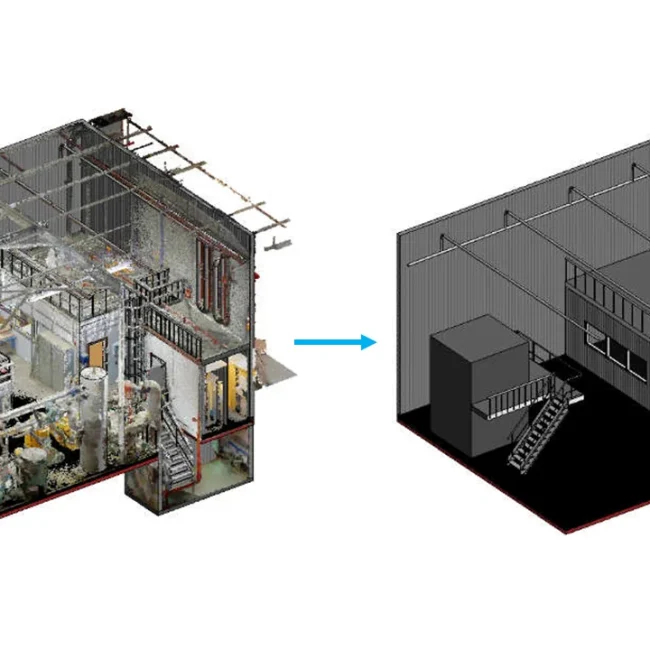

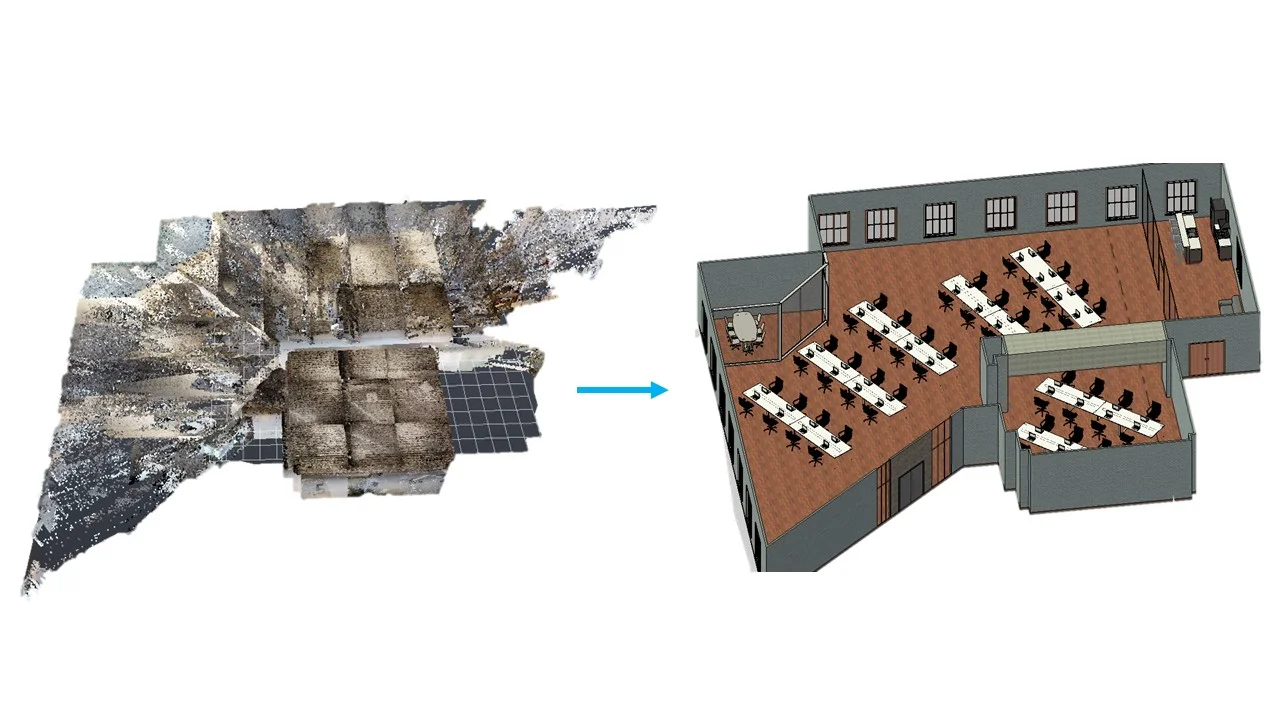

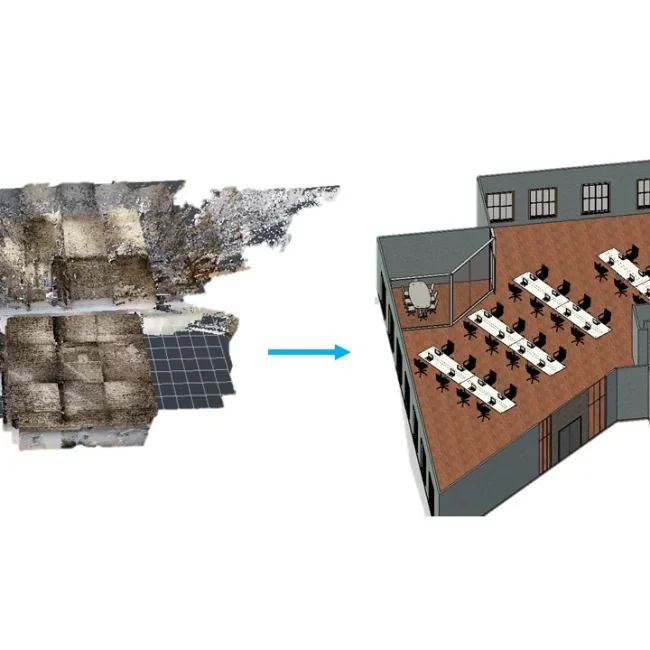

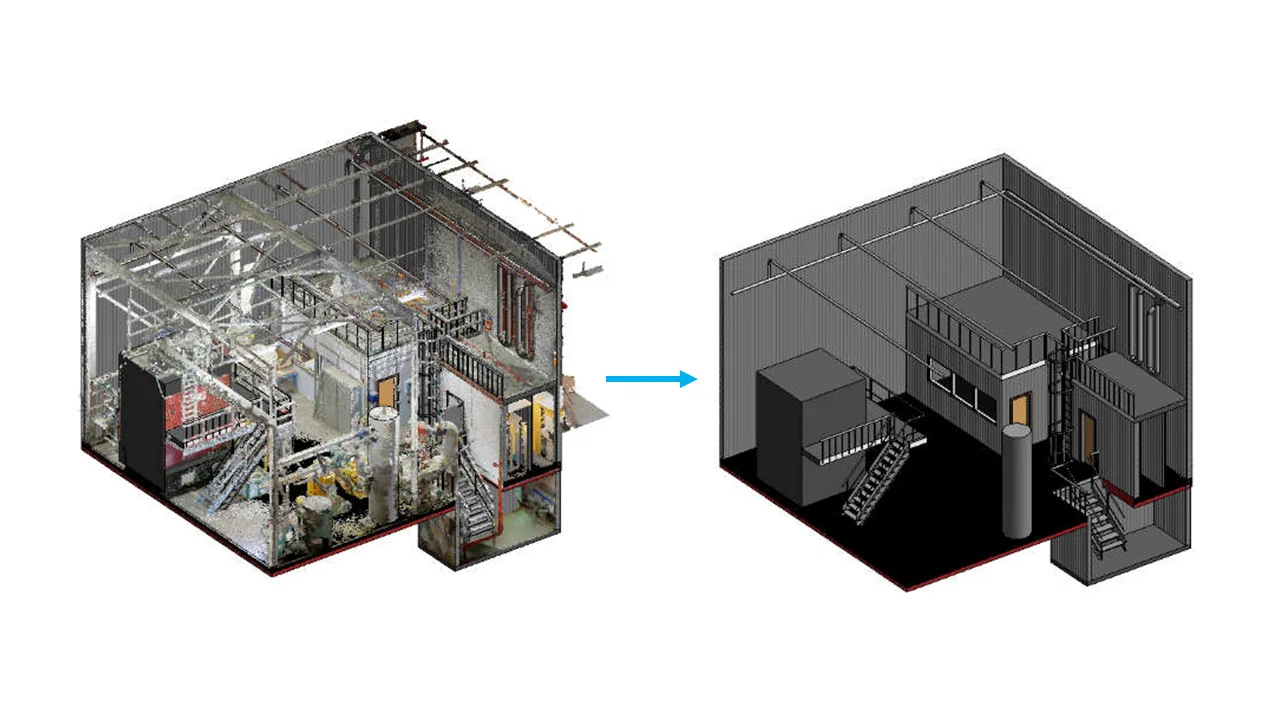

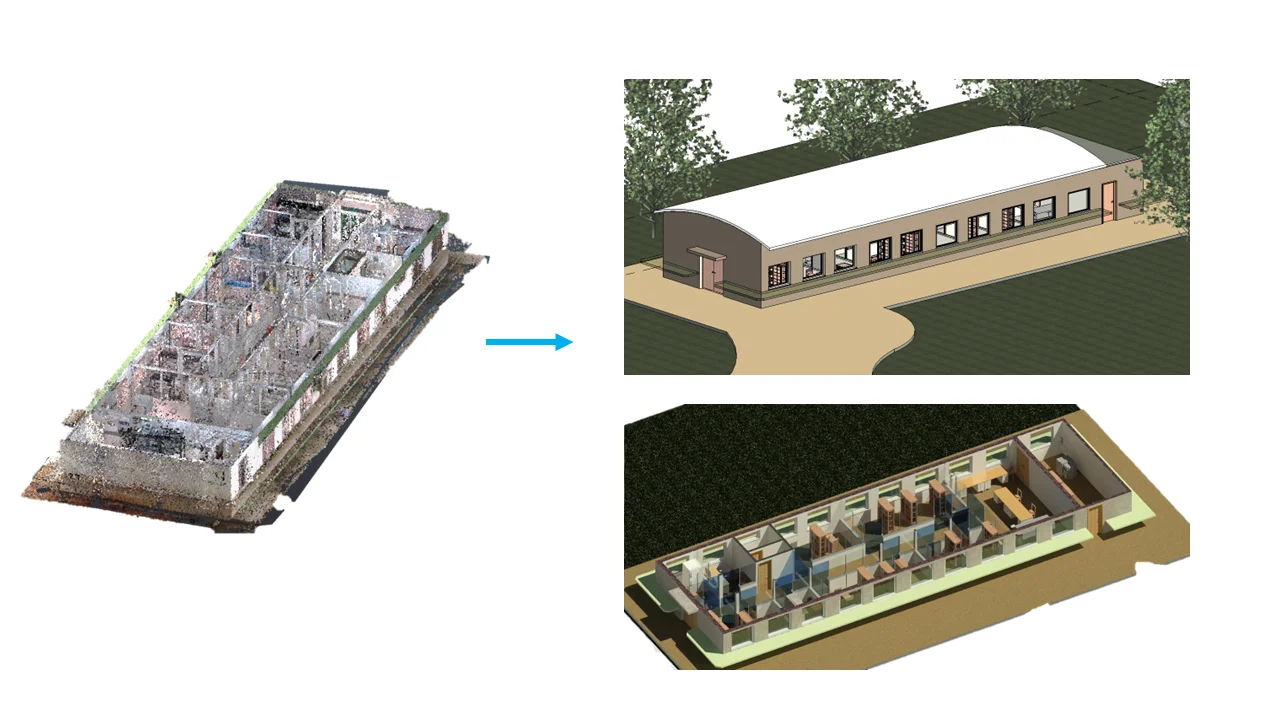

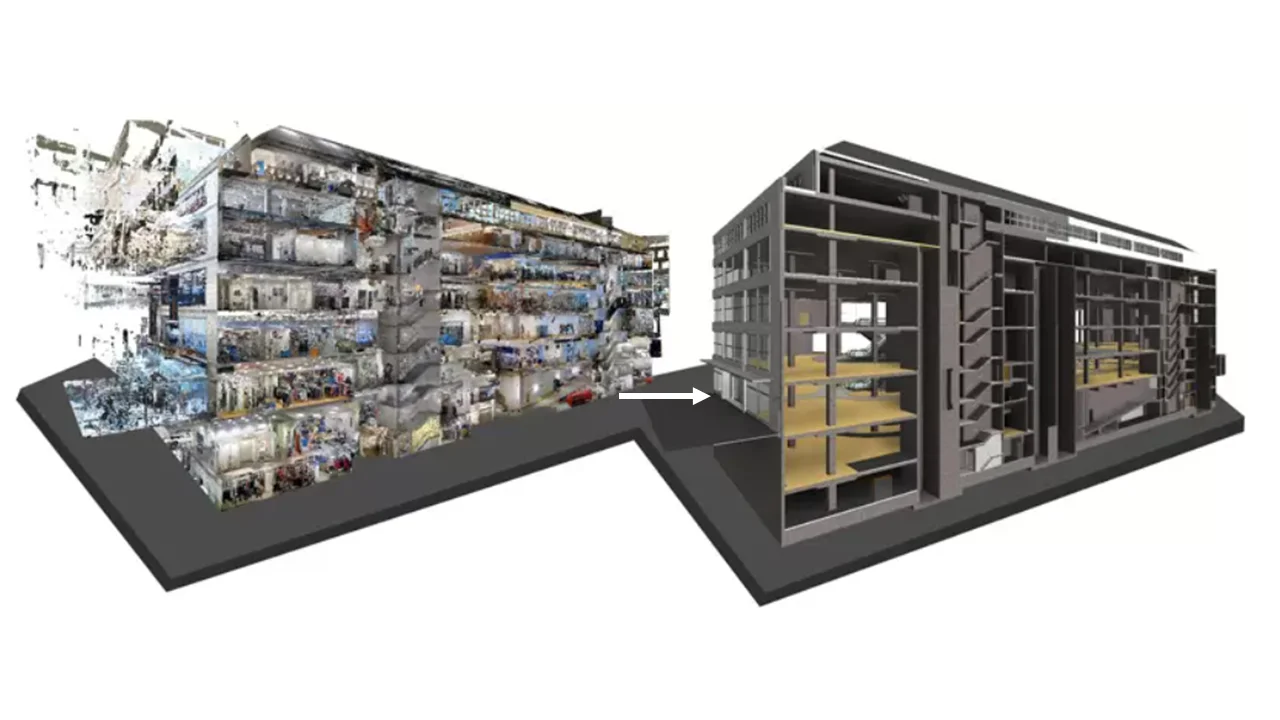

Conversion from Point Cloud Data to 3D Model

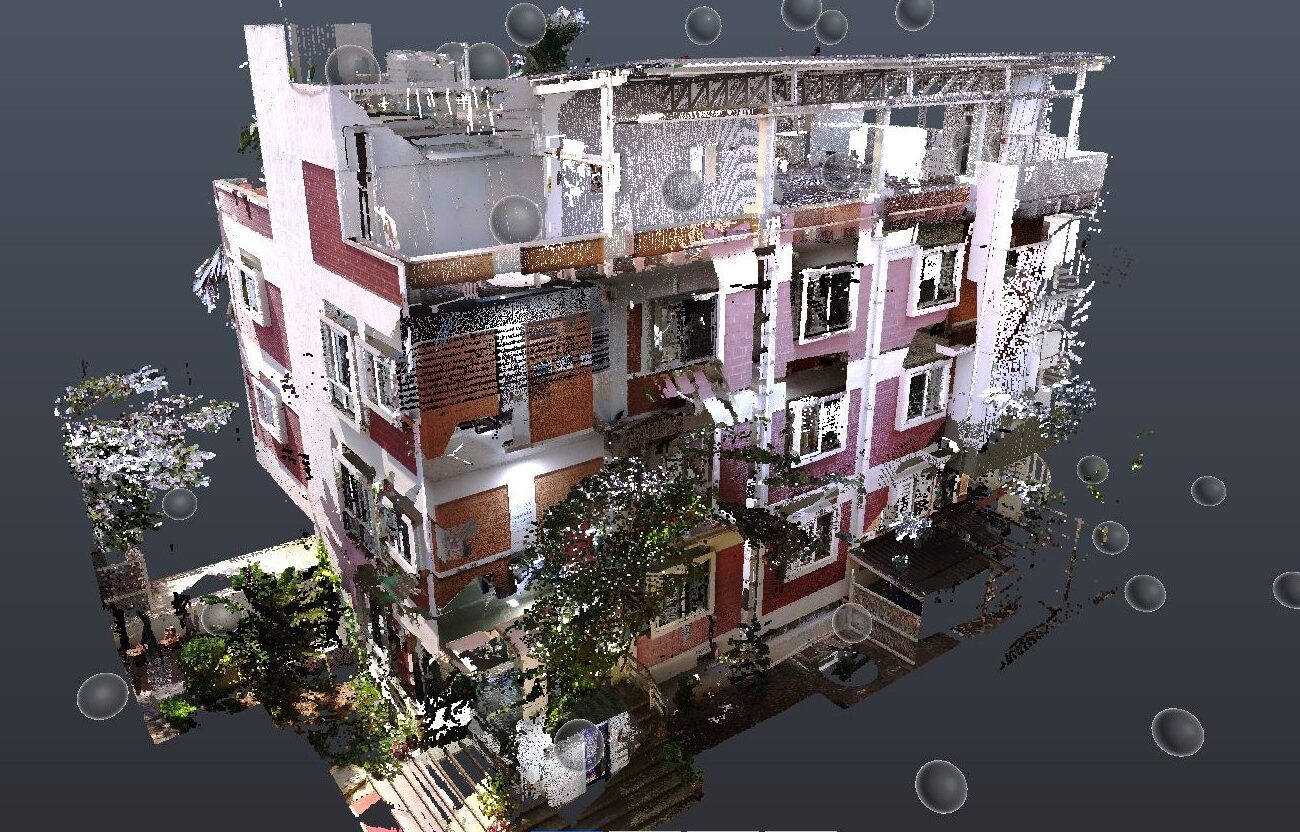

- Point Cloud Data (Input)
- Raw data captured using LiDAR, photogrammetry, or 3D scanning.
- Contains millions of unstructured data points.
- Requires processing for noise removal, alignment, and segmentation.
- Common input formats include .LAS, .PTS, .E57.
- 3D Model (Output)
- Processed and optimized 3D representation of the structure using tools such as Revit.
- Simplified and structured format suitable for visualization, BIM, or CAD.
- Finalized with textures, materials, and detailed features for real-world use.
- Common output formats include .RVT, .FBX, .DWG.

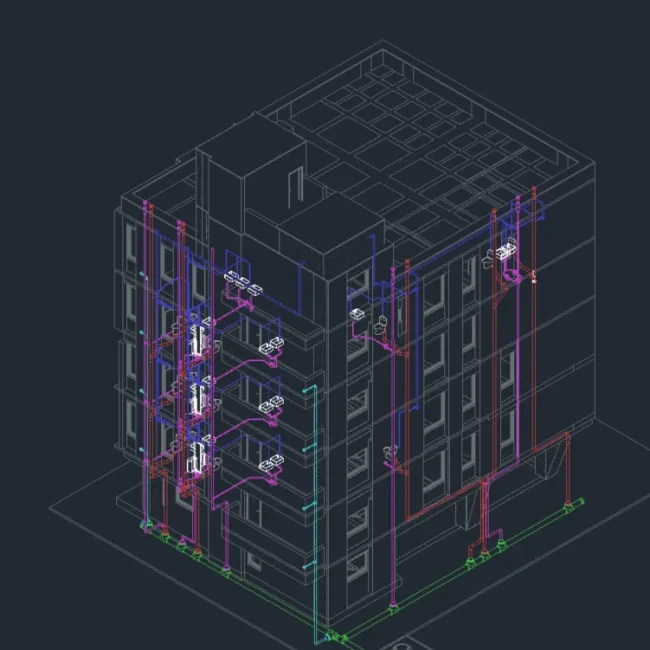

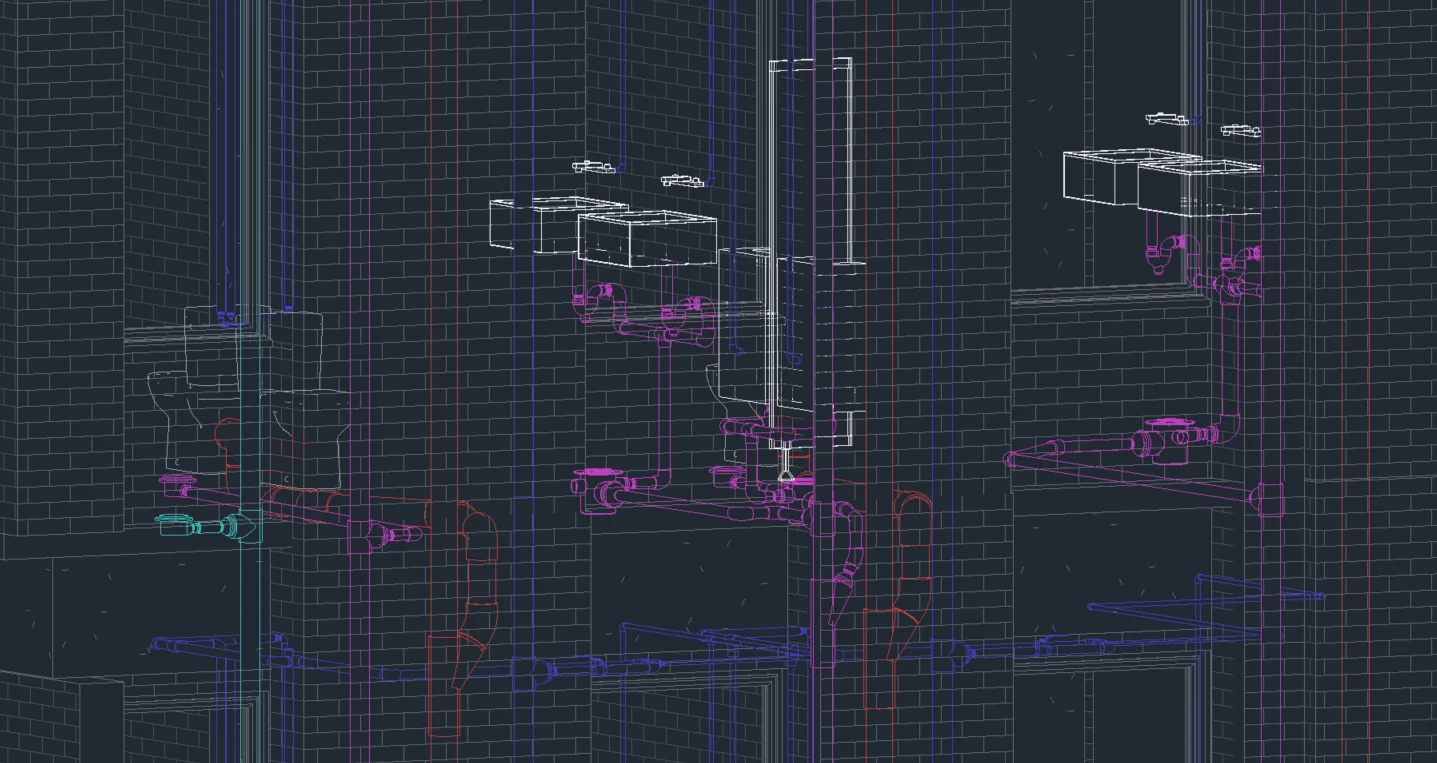

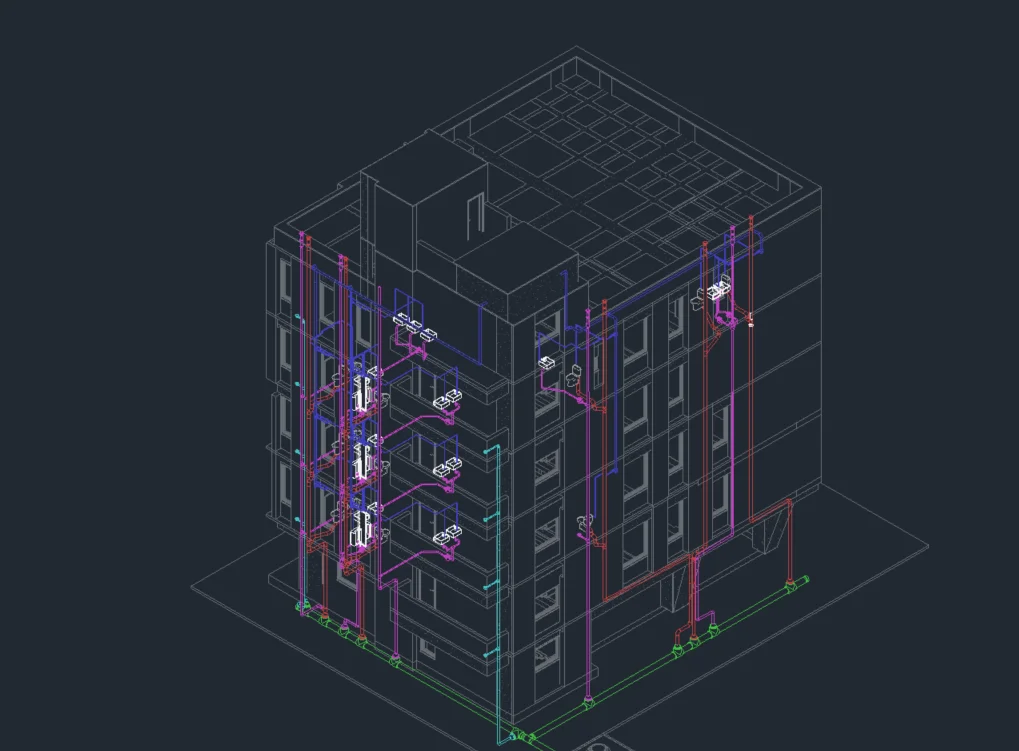

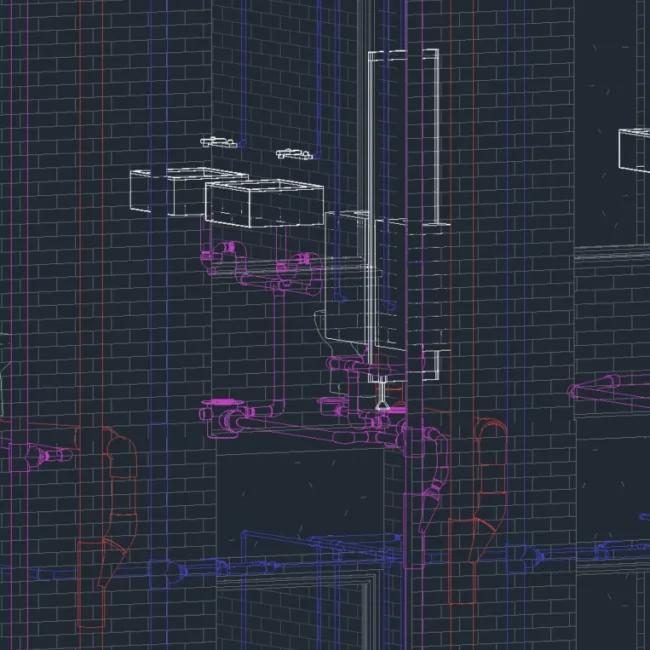

Mechanical, Electrical & Plumbing (MEP)
- Samples are derived from annotated permit files and are intended for updating As-Built drawings in AutoCAD and BricsCAD software:
- MEP Sample of Veterinary Clinic
- Low Voltage Electrical Plan
Rendering
Structural Designs
- The following design samples are based on the carport and deck design for a residential house in the USA created in AutoCAD & BricsCAD
- Carport Design
- Deck Design

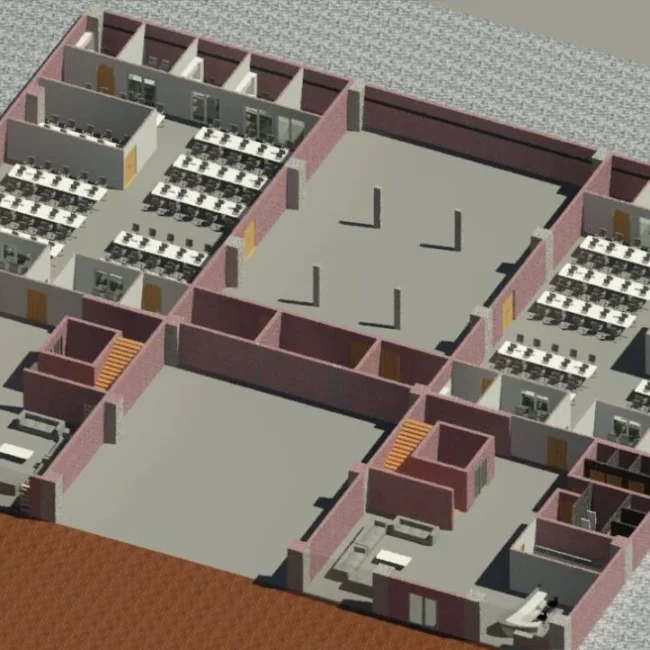

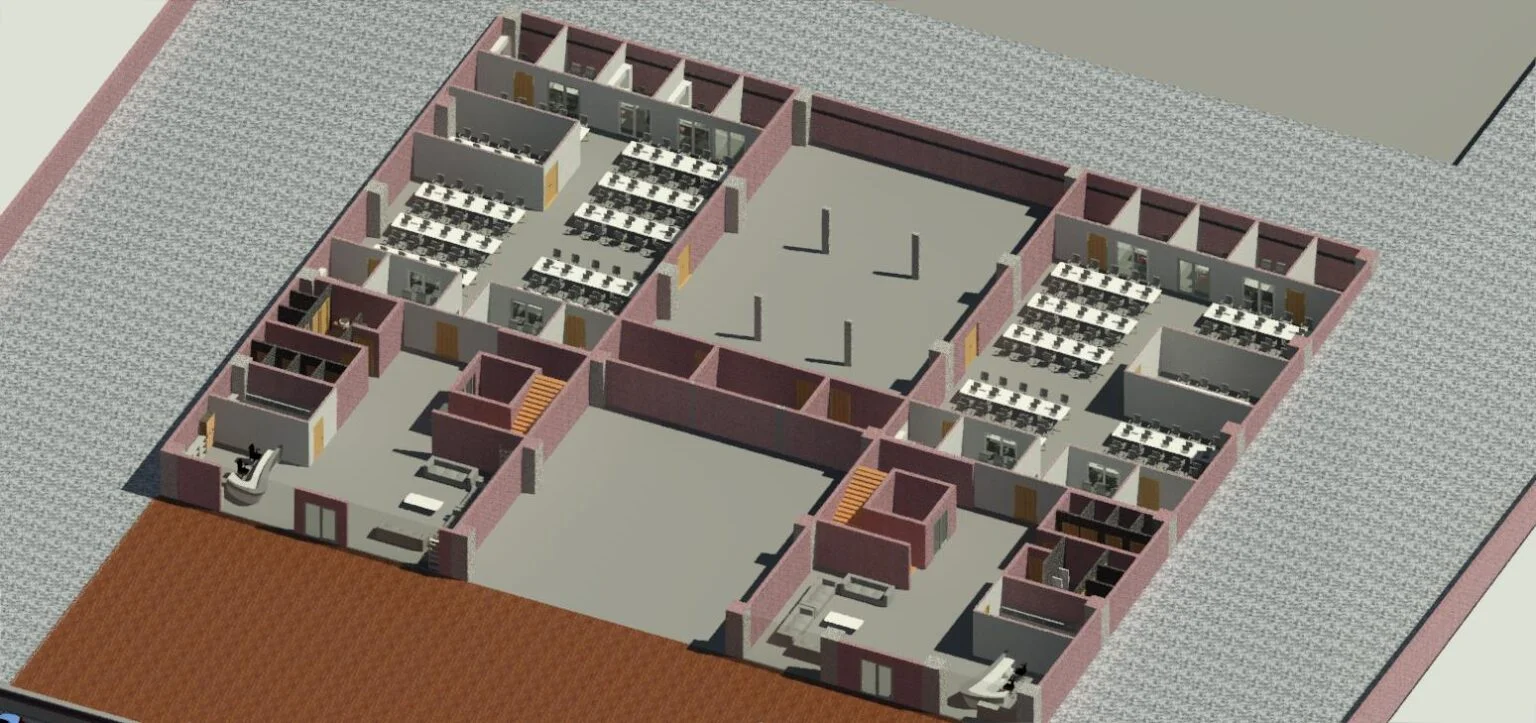

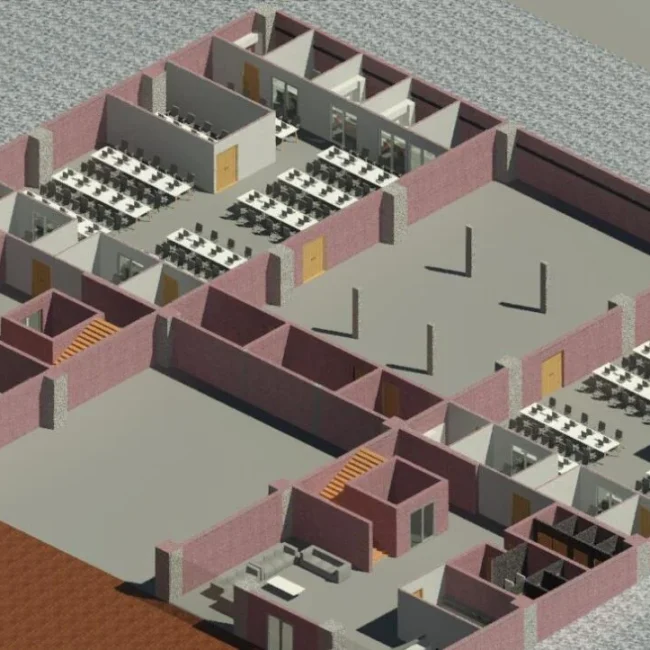

Building Information Modelling (BIM) Architecture

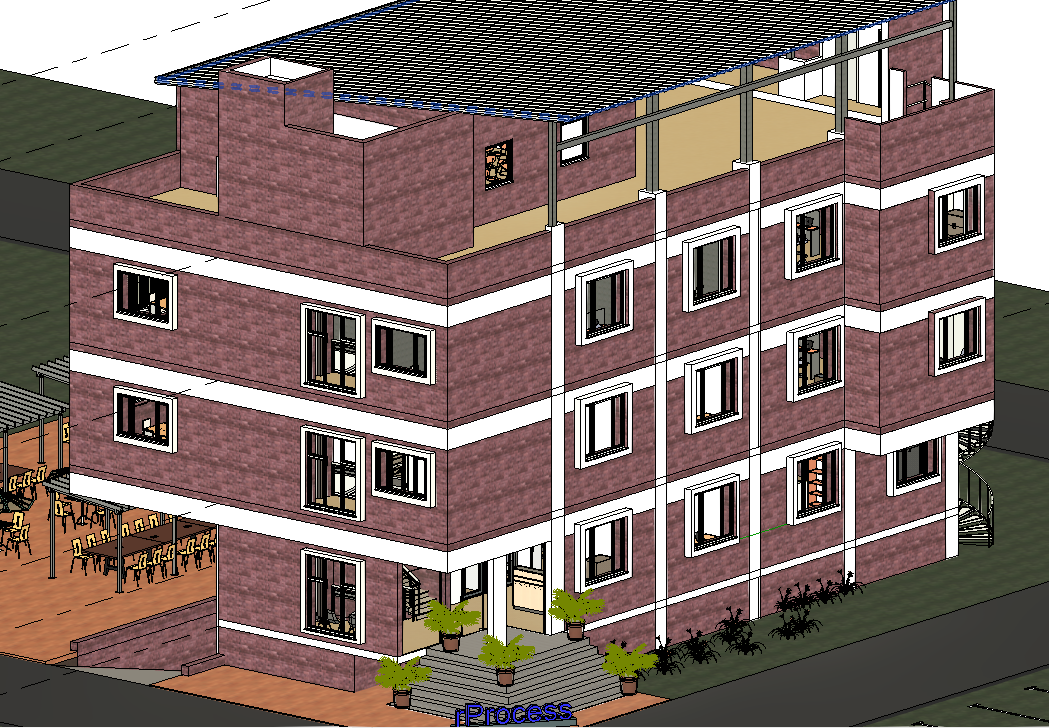

The following BIM model is created in Autodesk Revit for Issue for Construction (IFC) & As-built documentation:
